• Micro controller based.
• Dual 7 segment LED Display
• Set point setting: Feather touch switch.
• Industrial grade aluminum housing.
• Direction of rotation: Clockwise or Anticlockwise.
• Smallest possible size of the unit, compact and efficient.
• Powerful enough to control stepper motor up to 10 Kg cm
• Programmable vertical stroke set point with solid-state outputs.
• Internal DC power supply of 24v, 1.5 Amp. is must to run this drive.
• All inputs are optically isolated for better safety and reliability of the controller.

Specifications :

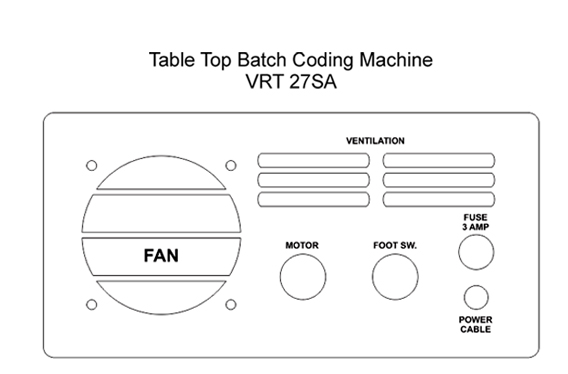

Front Fascia: 192w x 96h
Controller Depth: 160
Panel Cutout: 186w x 92h
Mounting: Side Clamps
All Dimensions are in mm.

• RPM control:   Digital.
• Restart timing setting:    0.1 sec to 120 sec. (Digital).
• Direction of rotation:    Clockwise or Anticlockwise.
• Input Supply: Power:    230v AC (±10%), 50/60 Hz.
• Inputs: Input1 (Start): NPN NO, 12v DC (Proximity Switch / Foot Switch)
• Output:   Stepper Motor Current Up to 1.5 Amps/Phase
• Specification

› Production counter memory: Yes
› Short circuit protection: Yes
› Direction Control: Yes
› Print Delay Timing: Yes
› Count Direction: Up
